Duct Sleeve - CE

The duct sleeves are intended for use where a ventilation duct passes through a fire rated wall. The sleeve maintains the integrity of the fire rated wall which would otherwise be lost. In the event of a fire, the advanced Duct Sleeve will expand with the heat, crushing the duct and closing off the hole to the fire for up to 120 minutes except the 220x90mm version which is rated up to 60 minutes. The Ventilation duct sleeves are available to fit all common sizes of plastic ventilation duct and are suitable for retro fitting with access only required from one side.

Sales or Technical Help At Passive Fire Protection

Filters

  • Brand
  • Condition
  • Price
  • Brand

  • Condition

Sort By
Showing 8 of 8 Items

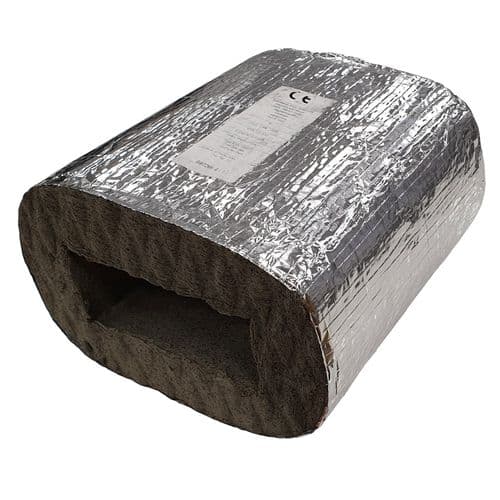

Intumescent Ventilation Fire Duct Sleeve - CE Marked (110 x 54 x 180 mm)

AFDS110
£16.94
£14.12 ex. VAT
Up to 120 minutes rating BS 476 EN 1366 | Excellent acoustic insulation | 110 x 54 x 180 mm | Easy fit - only requiring access from one side | Installs without needing special tools or skills

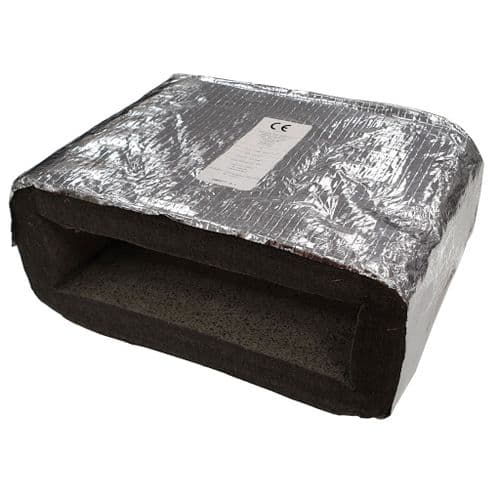

Intumescent Ventilation Fire Duct Sleeve - CE Marked (204 x 60 x 180mm)

AFDS204
£24.31
£20.26 ex. VAT
Up to 120 minutes fire rating BS 476 EN 1366 | Excellent acoustic insulation | 204 x 60 x 180mm | Easy fit - only requiring access from one side | Installs without needing special tools or skills

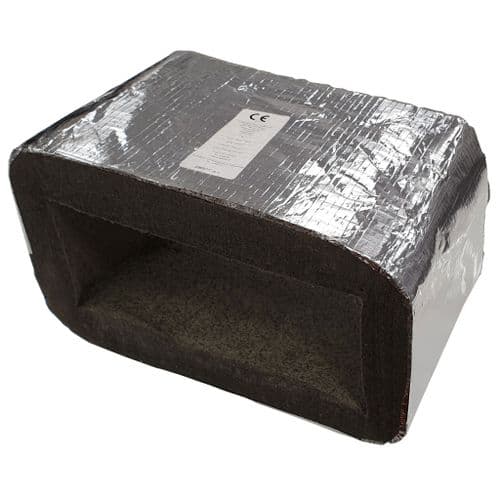

Intumescent Ventilation Fire Duct Sleeve - CE Marked (220 x 90 x 180mm)

AFDS22090
£45.82
£38.18 ex. VAT
Up to 60 minutes fire rating BS 476 EN 1366 | Excellent acoustic insulation | 220 x 90 x 180mm | Easy fit - only requiring access from one side | Installs without needing special tools or skills

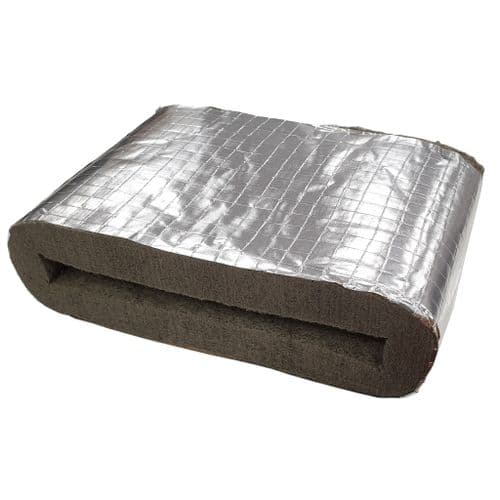

Intumescent Ventilation Fire Duct Sleeve - CE Marked (234 x 29 x 180mm)

AFDS234
£22.03
£18.36 ex. VAT
Up to 120 minutes fire rating BS 476 EN 1366 | Excellent acoustic insulation | 220 x 90 x 180mm | Easy fit - only requiring access from one side | Installs without needing special tools or skills
Intumescent Ventilation Fire Duct Sleeve - CE Marked (308 x 29x 180mm)

AFDS308
£24.79
£20.66 ex. VAT
Up to 120 minutes fire rating BS 476 EN 1366 | Excellent acoustic insulation | 308 x 29x 180mm | Easy fit - only requiring access from one side | Installs without needing special tools or skills
Intumescent Ventilation Fire Duct Sleeve - CE Marked (Circular 100mm diam)

AFDSC100
£29.09
£24.24 ex. VAT
Up to 120 minutes fire rating BS 476 EN 1366 | Excellent acoustic insulation | 100mm diam x 150mm | Easy fit - only requiring access from one side | Installs without needing special tools or skills
Intumescent Ventilation Fire Duct Sleeve - CE Marked (Circular 125mm diam)

AFDSC125
£43.46
£36.22 ex. VAT
Up to 120 minutes fire rating BS 476 EN 1366 | Excellent acoustic insulation | 125mm diam x 280mm | Easy fit - only requiring access from one side | Installs without needing special tools or skills
Intumescent Ventilation Fire Duct Sleeve - CE Marked (Circular 150mm diam)

AFDSC150
£61.39
£51.16 ex. VAT
Up to 120 minutes fire rating BS 476 EN 1366 | Excellent acoustic insulation | 150mm diam x 180mm | Easy fit - only requiring access from one side | Installs without needing special tools or skills
