Blazetrap® Double Rapid Outlet Box System (ROBS 2)

• Brand New CE Marked electrical back boxes.
• UL-EU Accreditation.
• Unique injection moulded intumescent box insert (ROBS Intumescent System) is the first in the UK and Europe.
• Noncorrosive stainless steel back box outer.
• Manufactured in the Great Britain.
• Free of organic solvents and releases no Volatile organic compounds (VOC)’s which have been known to have adverse health effects in fires.
• Halogen free.
• No galvanized or painted coatings, preventing zinc and harmful fume inhalation during fires.
• Tested in accordance with BS EN 1366-3: 2021.
• Tested for Insulated and Non Insulated walls.
• Tested for back to back installation.
• Tested for Timber or metal stud walls construction.
• Fire rating 30, 60, 90, 120 minutes.
• Acoustic Tested BS EN ISO 10140 – 2: 2010 to 67dB
• Quick and simple to install.
• Integrated pushout box fixings suitable for plasterboards 12.5 – 30mm thicknesses.
• Rear, Top and Bottom cable entry. Excepts 20-25mm fire protection glands.
• Completed fire stop system.
• Full product traceability.
• Patented technology and Trade Marked.
• National Winner of the Constructing Excellence Awards 2024.

Descriptions:

Blazetrap^® Rapid Outlet Box System (ROBS) is a groundbreaking Passive Fire Protection product, recently winning the UK Construction Excellence National Award for Innovation.

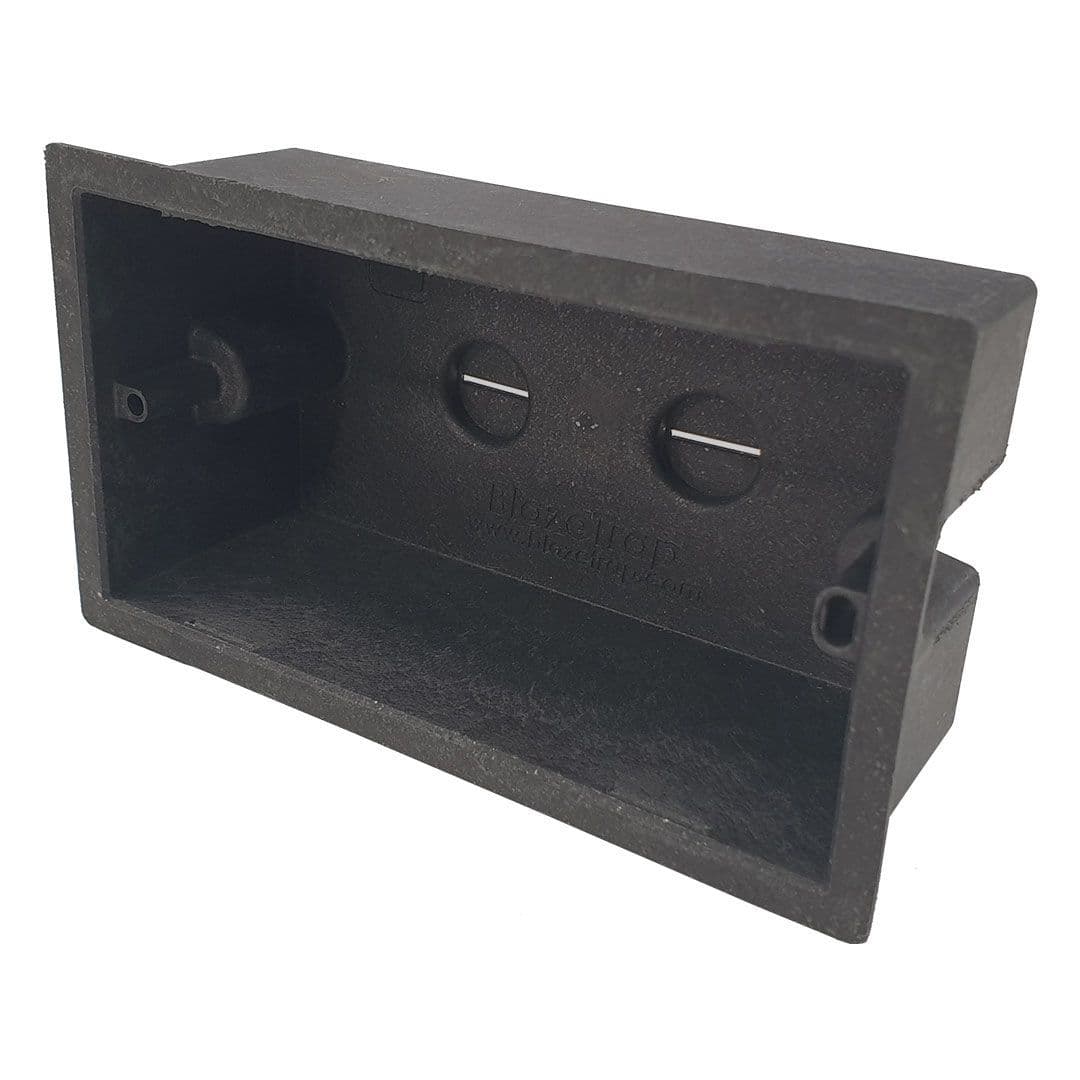

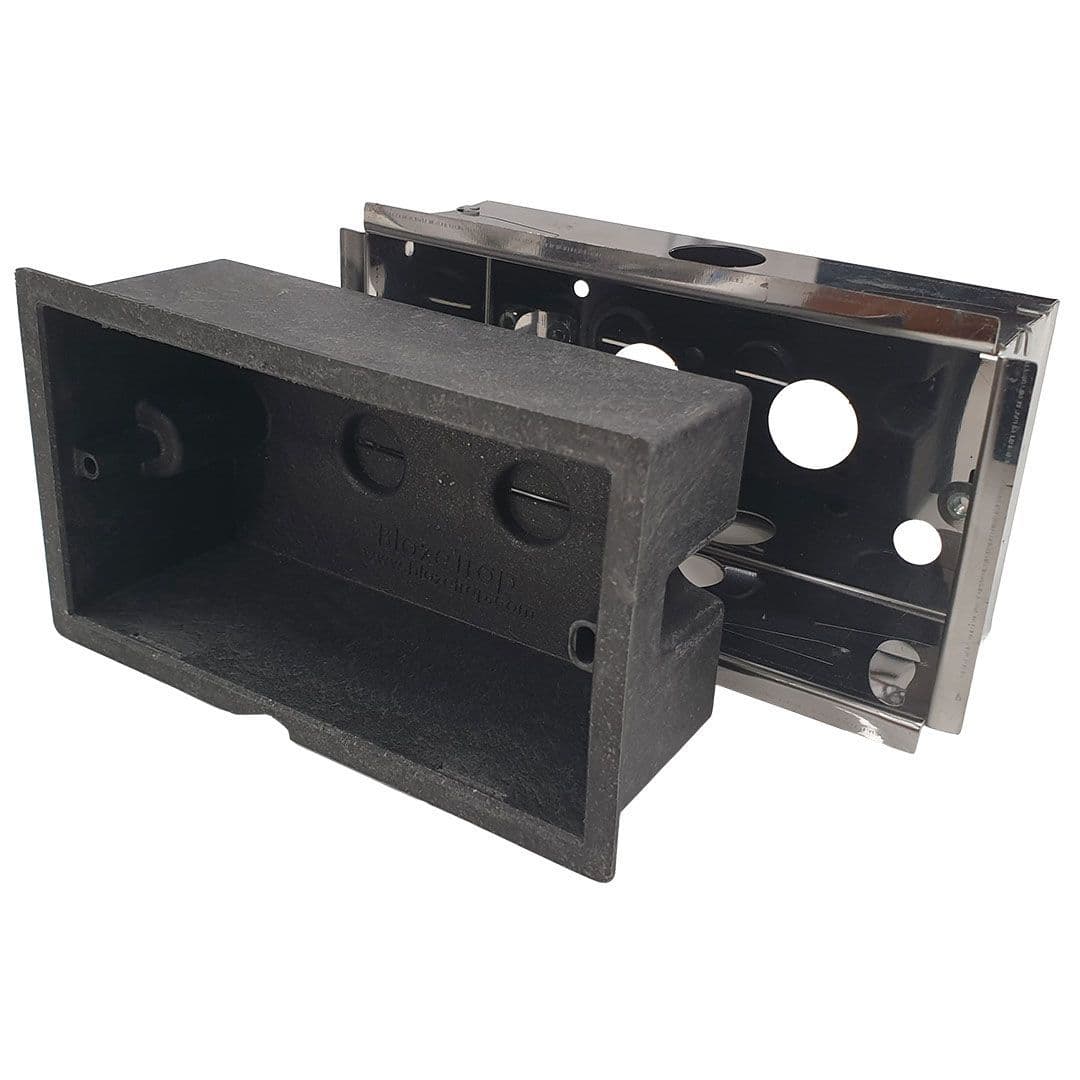

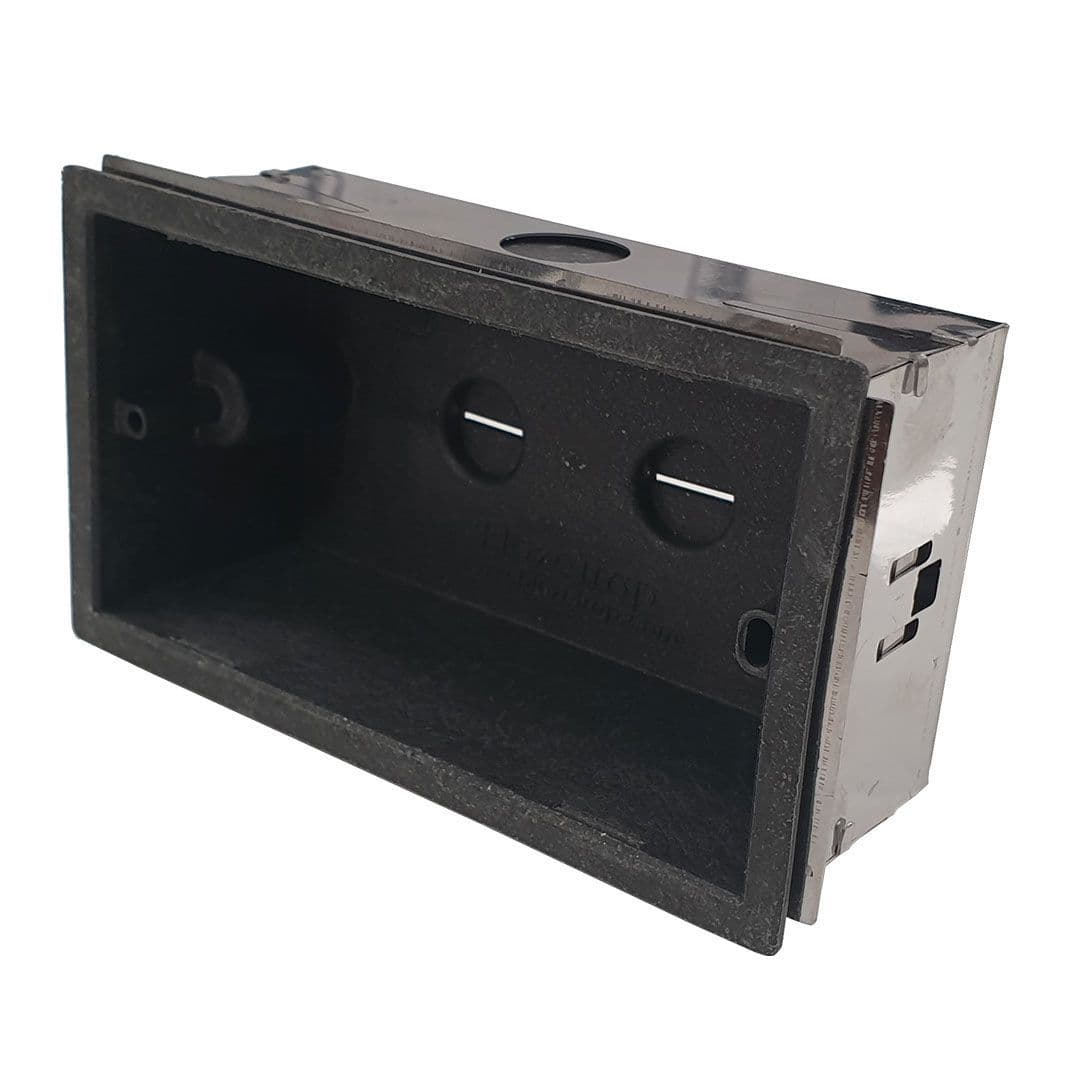

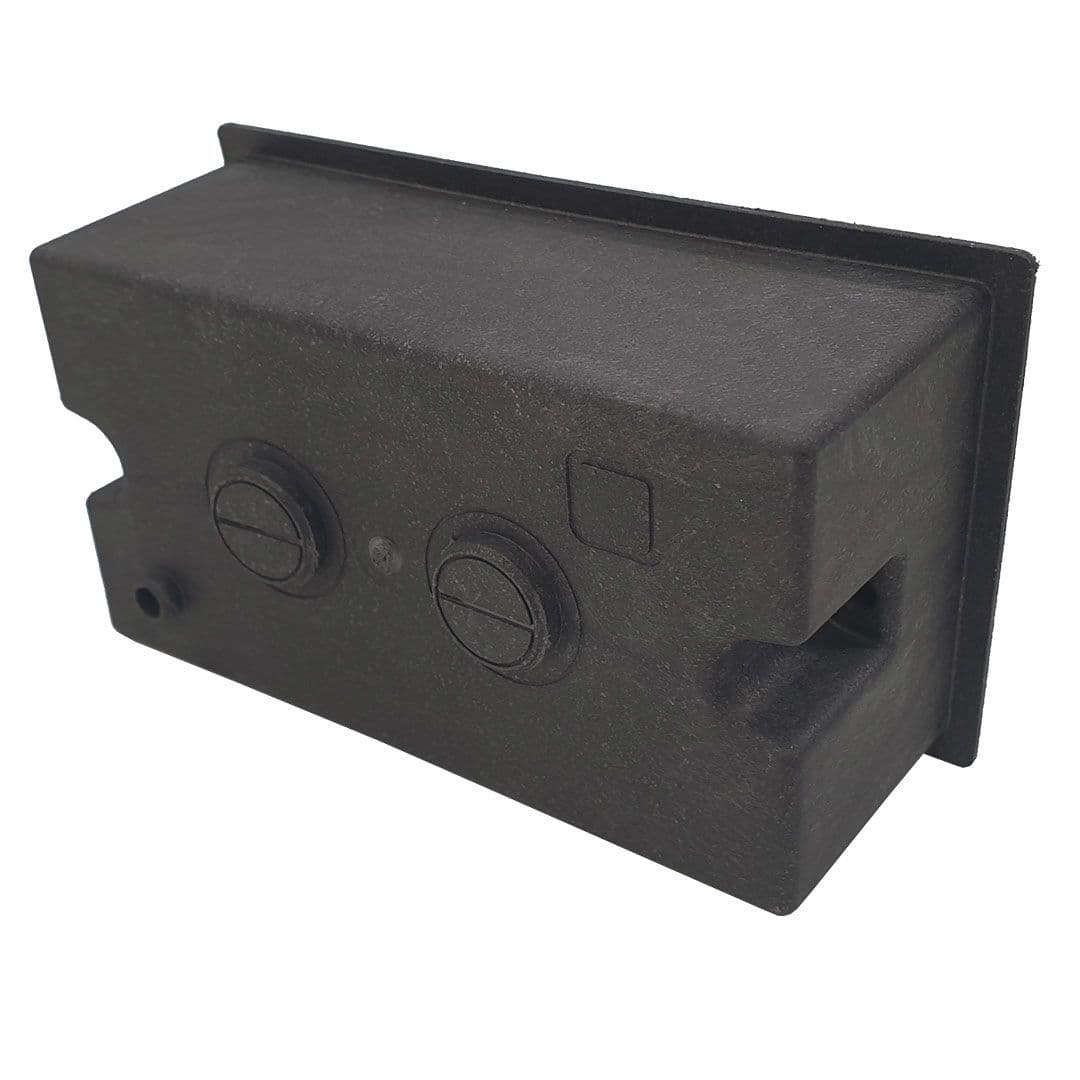

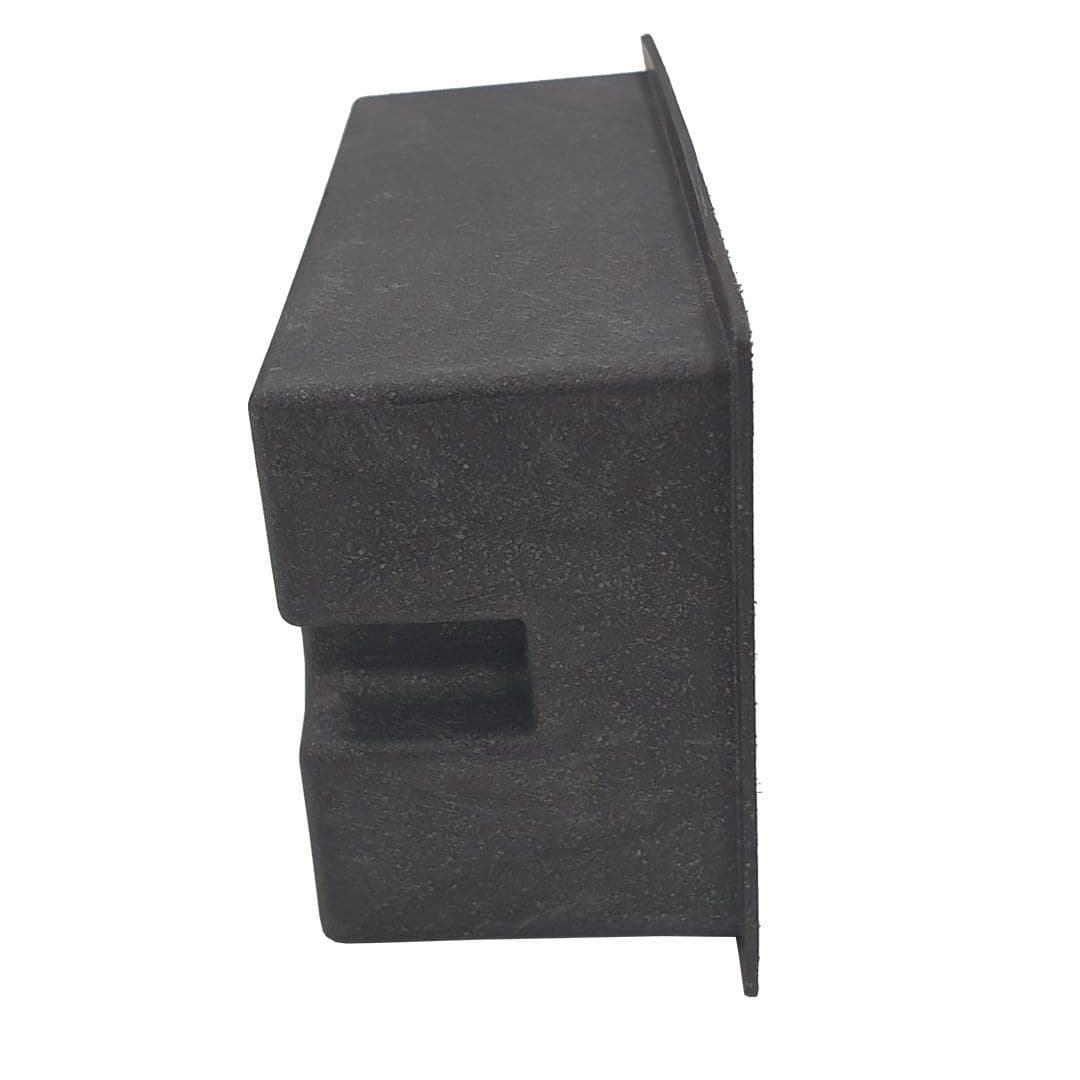

Advanced Fire Protection: Many current electrical back boxes are designed only for electrical connections with little fire protection. The Blazetrap^® Double ROBS 2 addresses this with a Stainless Steel Electrical Back Box featuring a unique injection-moulded Intumescent insert (ROBS Intumescent System) made from high-quality exfoliated graphite.

Innovative Technology: The ROBS Intumescent System reacts when exposed to fire, forming a solid char around cables, thus insulating the substrate, thereby starving the fire of essential elements for combustion and preventing the passage of fire from one compartment to another. This technology is patented and trademarked.

Complete System: No separate box outers needed, eliminating the risk of incorrect sizes, depths, and materials.

Ease of Installation: Integrated pushout fixing tabs, quick installation of the ROBS intumescent System, no sealants or supporting brackets needed, one size, Blazetrap^® ROBS fits all cavity wall depths.

Cost Efficiency: Reduces installation costs, requires zero maintenance, and offers a longer product lifespan.

Traceability: Full product traceability from manufacture to end user and back again.

Product Specifications: ROBS 2 Double Gang Box: 134x74x50mm (standard back box for 30/60 minute applications using 1x12.5mm or 2x12.5mm Boards). Should you require 90/120 minute applications or using 15mm boards please contact sales@passivefireprotection.co.uk.

Liability Reduction: The Blazetrap^® Rapid Outlet Box System (ROBS 2) significantly reduces liability risks associated with electrical installations as well as different trade use installations. Unlike alternative products on the market, such as Putty pads, which require separate purchases from different suppliers and may not be fire-rated or tested together, Blazetrap^® offers a complete, tested system. This comprehensive solution ensures enhanced fire protection and compliance with safety standards, providing peace of mind for specifiers, design engineers, architects, installation contractors, main contractors, development owners, and residents. The liability is effectively omitted, eliminating risks associated with incomplete or untested systems.

Experience the future of Passive Fire Protection with Blazetrap^® ROBS. Ensure safety and compliance with this cutting-edge solution.

Technical Data:

2821
Blaze Trap Ltd Unit 29 Penraevons Light Industrial Estate, Jackson Road, Leeds, West Yorkshire, LS7 2AP
CE 2821-CPR-0354
BS EN 1366-3: 2021 Blazetrap® Rapid Outlet Box System (ROBS 1 & 2) For fire compartmentation and / or fire protection or performance
Essential Characteristics	Performance/Harmonized Technical Specification
Reaction to Fire	Class E according to EN13051-1
Resistance to Fire	Resistance to fire performance & field of application in accordance with EN13501-2 See ETA 25/0262 clause - Annex A
Dangerous Substances	See ETA 25/0262 Clause 1
Service & Durability	Type: X Intended for use in conditions exposed to weathering in accordance with EOTA technical documents TR024
Acoustic	BS EN ISO 10140 – 2: 2010
Other	Not applicable/No performance determined

Specification:

• Size: 134x74x50mm.
• Type: ROBS 2 Double Gang Box.
• Standard ROBS boxes are designed to accommodate one or two layers of 12.5 mm boards. If you require compatibility with 15 mm boards, please contact our sales team at sales@passivefireprotection.co.uk to discuss lead times, as these units are manufactured to order.

Installation:

We have technical representatives who provide assistance in the selection and specification of the products on this site and should be consulted for exact installation and product suitability. Ensure an early engagement with ourselves, designers, main contractor and specialist installers before any installation. Other trades and/or manufacturers may need to be consulted. For in-depth information, specification and technical advice please call our Head Office on Tel: +(0)1329 841416 or email sales@passivefireprotection.co.uk

Maintenance:

All interested parties, designer, specifier, main contractor and specialist installers should provide access to allow the fire stopping seals to be regularly inspected and maintained, as well as records kept of such maintenance at minimum periods of 12 months, as required by the Regulatory Reform Order, and repaired if necessary. Reference should be made to ASFP TGD 17 Code of Practice for the Installation and Inspection of Fire Stopping.

Competency:

It is vital that those entrusted to design or install a fire stopping product have the necessary levels of competence to undertake the task professionally and thoroughly. The level of competency required will be commensurate with the expected complexity of the building. All designers must eliminate, reduce or control foreseeable risks that may arise during installation, construction or maintenance when preparing or modifying designs. Clients should ensure that the principal designer and principal contractor carry out their duties under CDM regulations. The ASFP foundation course in passive fire protection provides essential knowledge as part of demonstrating competency and understanding in this key fire protection specialism.

Additional Notes:

Please refer to the ETA/UL-EU sheet for fields of application for this product. For further information on installation requirements please refer to the pipe manufacturer data and wall specification to ensure the compatibility of this product, if in doubt please contact the technical team with services and wall specification on Tel: +(0)1329 841416 or email sales@passivefireprotection.co.uk
