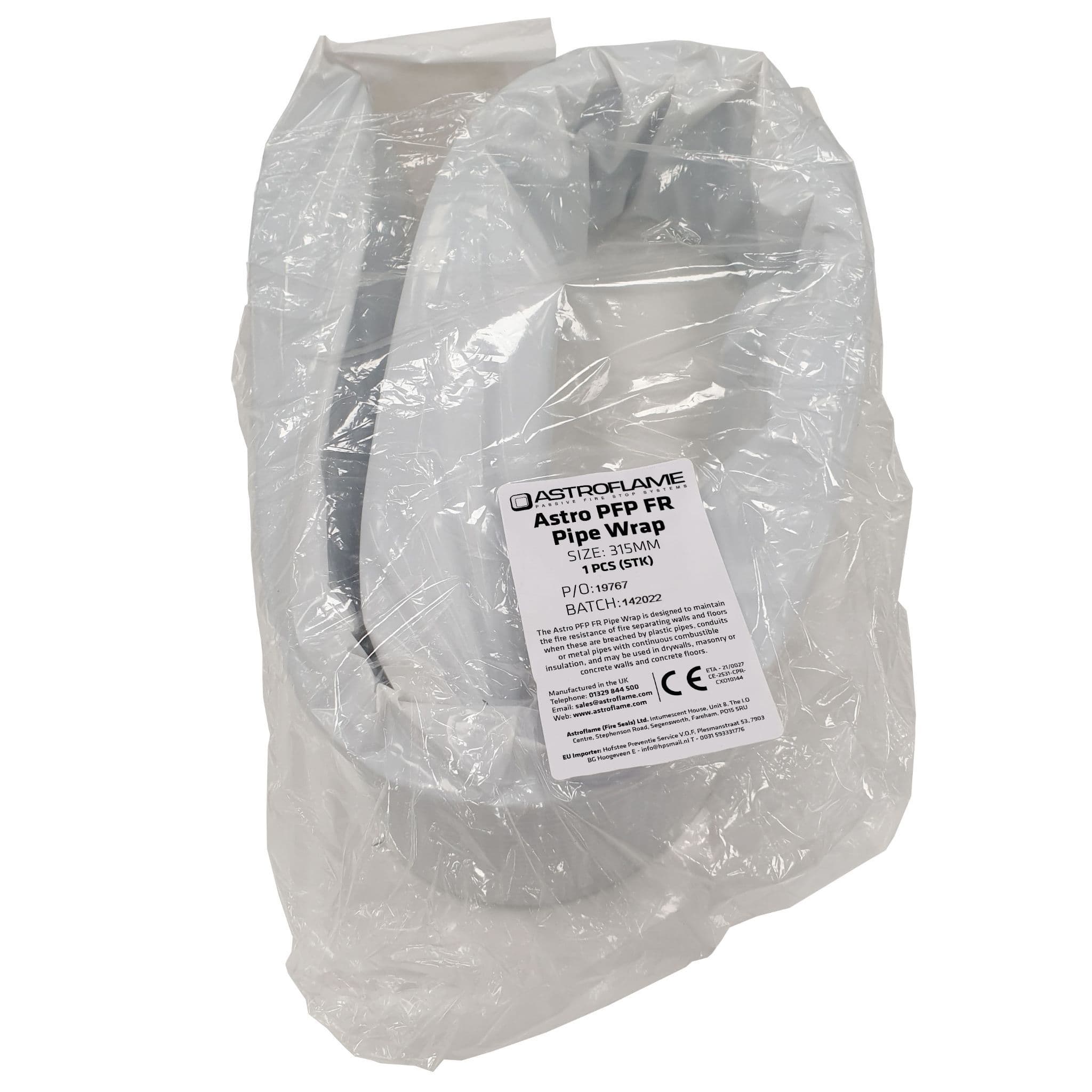

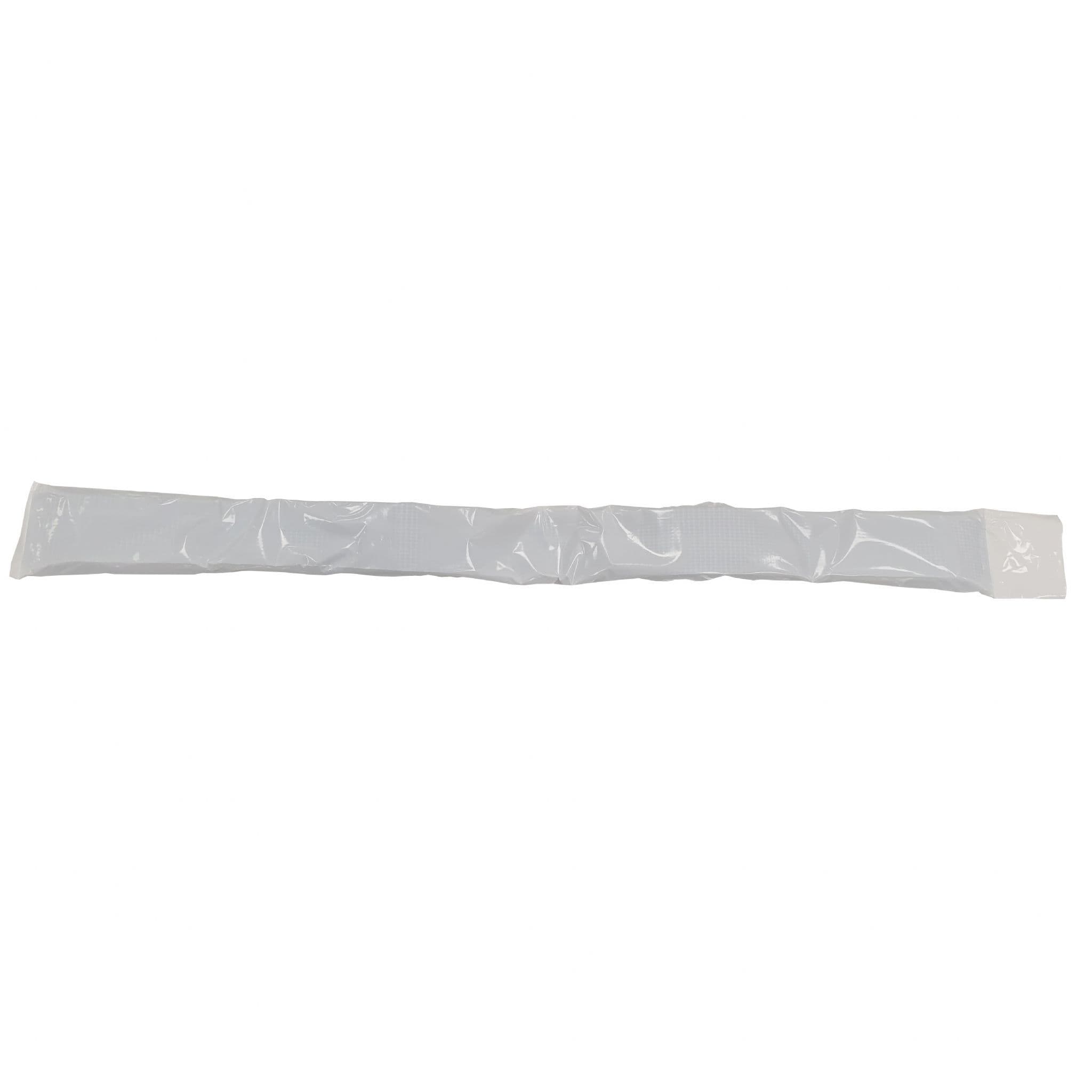

Astro PFP FR Pipe Wrap 315mm

Product Code: AFPFPPW315

The Astro PFP FR Pipe Wrap | For metal pipes with continuous combustible pipe insulation | Certified for PVC-U, PVC-C, PE, LDPE, MDPE, HDPE, ABS, SAN+PVC and PP pipes | Simple to install in both Astro PFP FR Board and Astro PFP FR EX Mortar

£77.08
£64.23 (ex. VAT)
For in stock items Order by 2pm, Many delivery options available!

Description

Key Points:

  • For plastic pipe sizes from smallest pipes available to Ø315 mm with a wide range of pipe wall thicknesses.
  • For metal pipes with continuous combustible pipe insulation.
  • For plastic pipes with cables (conduits).
  • Pipe wraps comes ready made for most common diameters.
  • Fire classifications up to 240 minutes for both integrity and insulation.
  • Certified for PVC-U, PVC-C, PE, LDPE, MDPE, HDPE, ABS, SAN+PVC and PP pipes.
  • Tested and certified for U/U pipe end applications.
  • Simple to install in both Astro PFP FR Board and Astro PFP FR EX Mortar.
  • For internal use.

Description:
The Astro PFP FR Pipe Wrap is designed to maintain the fire resistance of fire separating walls and floors when these are breached by plastic pipes, conduits or metal pipes with continuous combustible insulation, and may be used in drywalls, masonry or concrete walls and concrete floors.

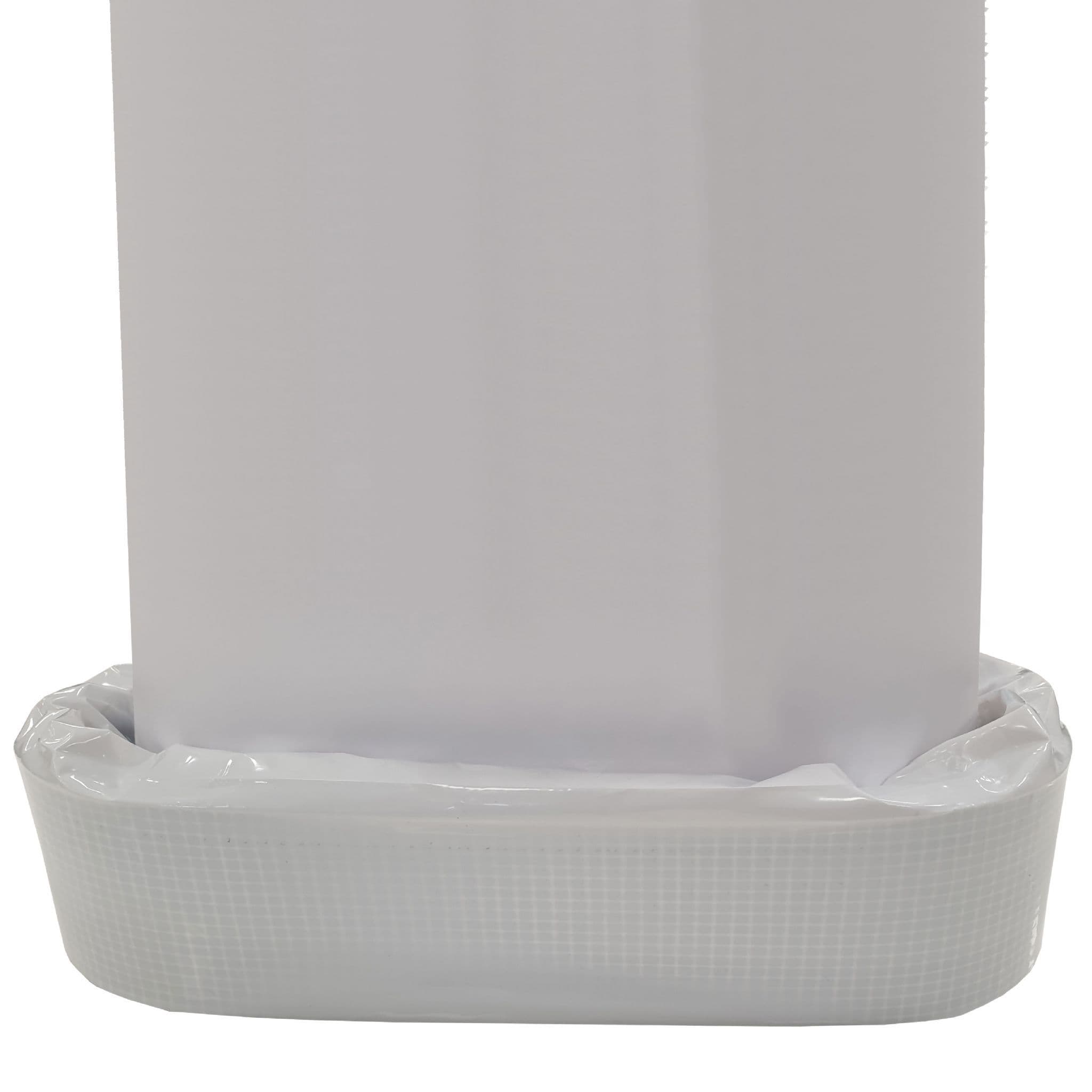

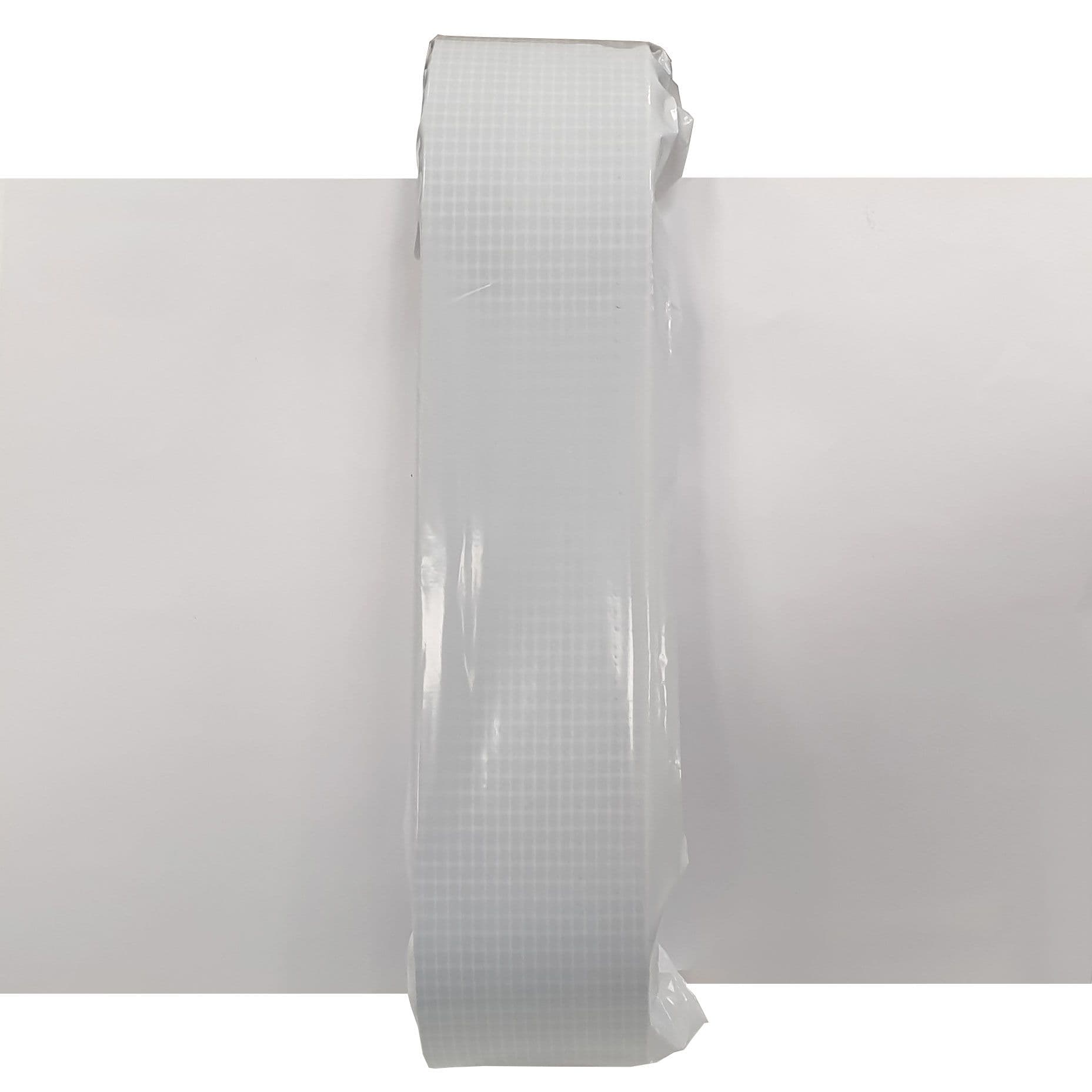

Each pipe wrap consists of a graphite based reactive intumescent strip, which reacts to heat and closes the opening left by the softening plastic pipe or pipe insulation in a fire. The pipe wrap is installed completely around the pipes or insulation and secured with the self adhesive tab. The annular space around the pipe wrap is sealed with Astro PFP FR EX Mortar or Astro PFP FR Boards.

Sizes and Intended Use:

Product CodeSizeIntended Use
AFPFPPW315Astro PFP FR Pipe Wrap 315mmPlastic pipes 315mm

Specification:

  • Size: 315mm
  • Colour: Grey

Installation:

We have technical representatives who provide assistance in the selection and specification of the products on this site and should be consulted for exact installation and product suitability. Ensure an early engagement with ourselves, designers, main contractor and specialist installers before any installation. Other trades and/or manufacturers may need to be consulted. For in-depth information, specification and technical advice please call our Head Office on Tel: +(0)1329 841416 or email sales@passivefireprotection.co.uk

Maintenance:

All interested parties, designer, specifier, main contractor and specialist installers should provide access to allow the fire stopping seals to be regularly inspected and maintained, as well as records kept of such maintenance at minimum periods of 12 months, as required by the Regulatory Reform Order, and repaired if necessary. Reference should be made to ASFP TGD 17 Code of Practice for the Installation and Inspection of Fire Stopping.

Competency:

It is vital that those entrusted to design or install a fire stopping product have the necessary levels of competence to undertake the task professionally and thoroughly. The level of competency required will be commensurate with the expected complexity of the building. All designers must eliminate, reduce or control foreseeable risks that may arise during installation, construction or maintenance when preparing or modifying designs. Clients should ensure that the principal designer and principal contractor carry out their duties under CDM regulations. The ASFP foundation course in passive fire protection provides essential knowledge as part of demonstrating competency and understanding in this key fire protection specialism.

Additional Notes:

Please refer to the ETA sheet for fields of application for this product. For further information on installation requirements please refer to the pipe manufacturer data and wall specification to ensure the compatibility of this product, if in doubt please contact the technical team with services and wall specification on Tel: +(0)1329 841416 or email sales@passivefireprotection.co.uk

Download and review any of the following information:

Certification/Fire Test Reports:

CE InformationCE Marked Documents
'DoP's are 'Declaration of Performance'
'CoC's are 'Certificate of Constancy of Performance'
'ETA' European Technical Assessment Sheet
'TDS' are 'Technical Data Sheet'

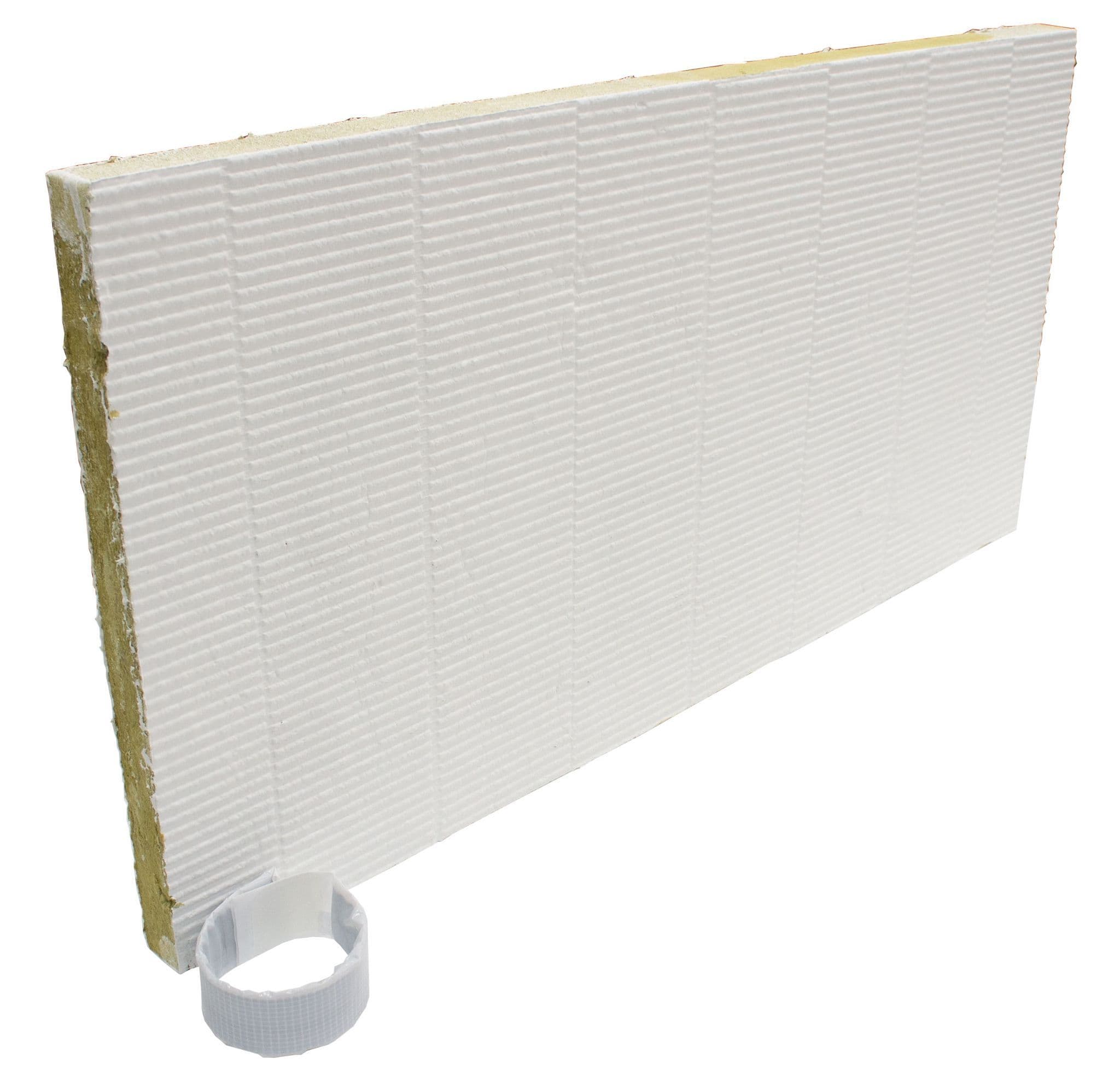

Installation in the Astro PFP FR Boards:

Installation in the Astro PFP FR EX Mortar:

Specifications

  • Brand:
    Astroflame
  • Condition:
    New
  • Product Code:
    AFPFPPW315
